Restricted Access
Barrier Systems
At Isotech Pharma, our RABS & CRABS systems provide an advanced solution for pharmaceutical manufacturing, offering a controlled environment that meets the highest standards of sterility and safety. Designed to comply with cGMP, EU GMP Grade A, and FDA requirements.
Engineered for Contamination Control

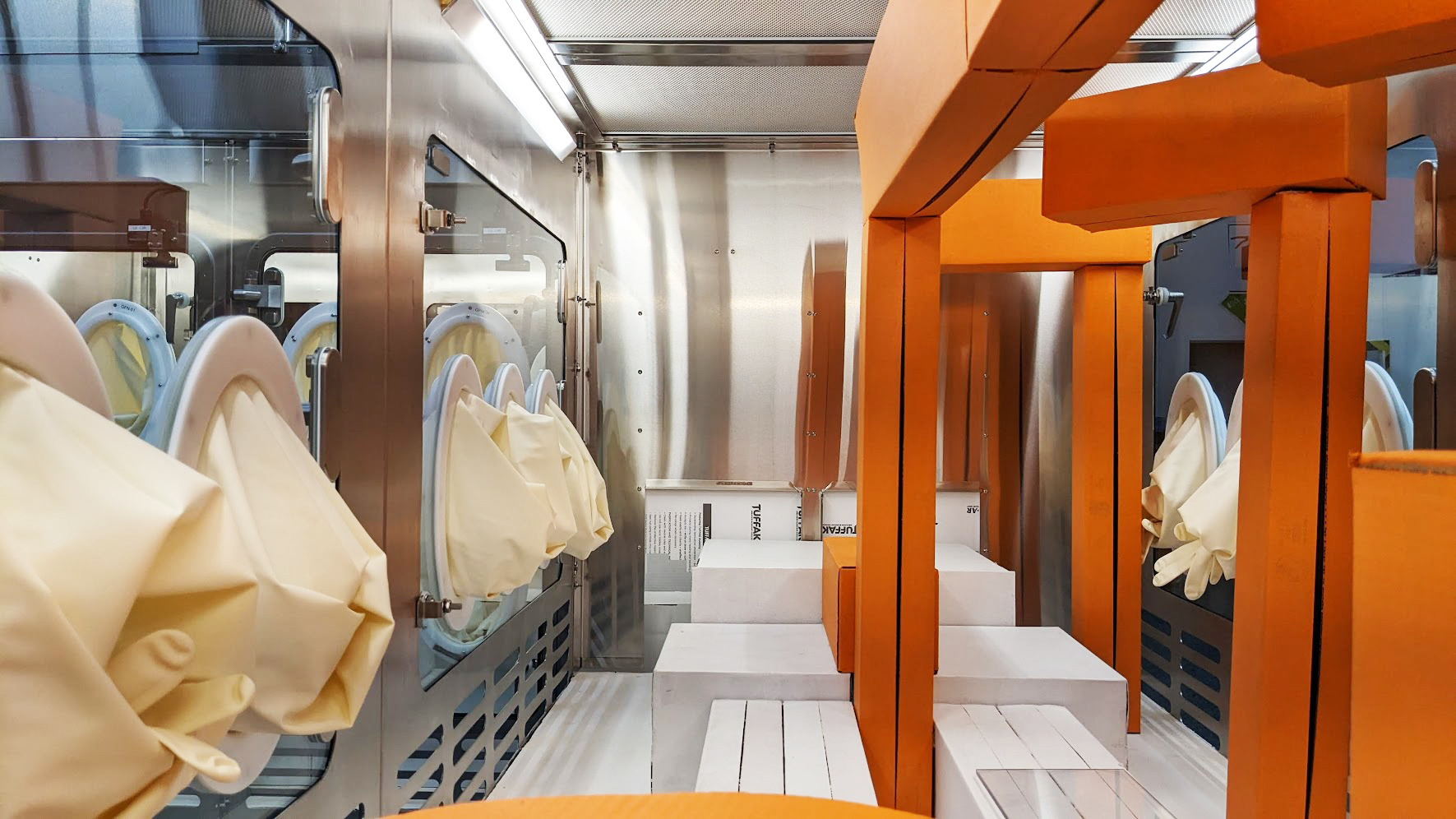

Isotech Pharma’s RABS & CRABs are meticulously designed to create a sterile, restricted-access environment, ideal for aseptic processing and other sensitive pharmaceutical applications.
Featuring a robust set of specifications derived from our customized RABSPHERE™ line, our systems deliver precision, reliability, and full cGMP compliance.
Advanced Filtration
Open RABS louvers allow air to exit into the room, ensuring proper circulation. Can be upgraded to Closed RABS (cRABS) for hazardous processing with full exhaust containment.
Technical Specifications
- High-Efficiency HEPA Filter Units Motorized fans provide vertical unidirectional airflow at 90 ft/min @ 12″, meeting ISO 5 (EU GMP Grade A).
- Air Quality Excellence Achieves ISO 4.8 with 0.45 m/s ±10% velocity, maintaining positive pressure of 25 Pa ±5 Pa.
- Durable Construction 3/8″ thick laminated/tempered glass windows with automatic interlocking and stoppers (90° max opening).
- Secure Transfer Equipped with Alpha-Beta doors (8″) on left and right sides for secure material transfer without breaking sterility.
Intelligent Monitoring & Control
Isotech Pharma RABS integrate cutting-edge technology for seamless operation and real-time oversight of your critical environment.

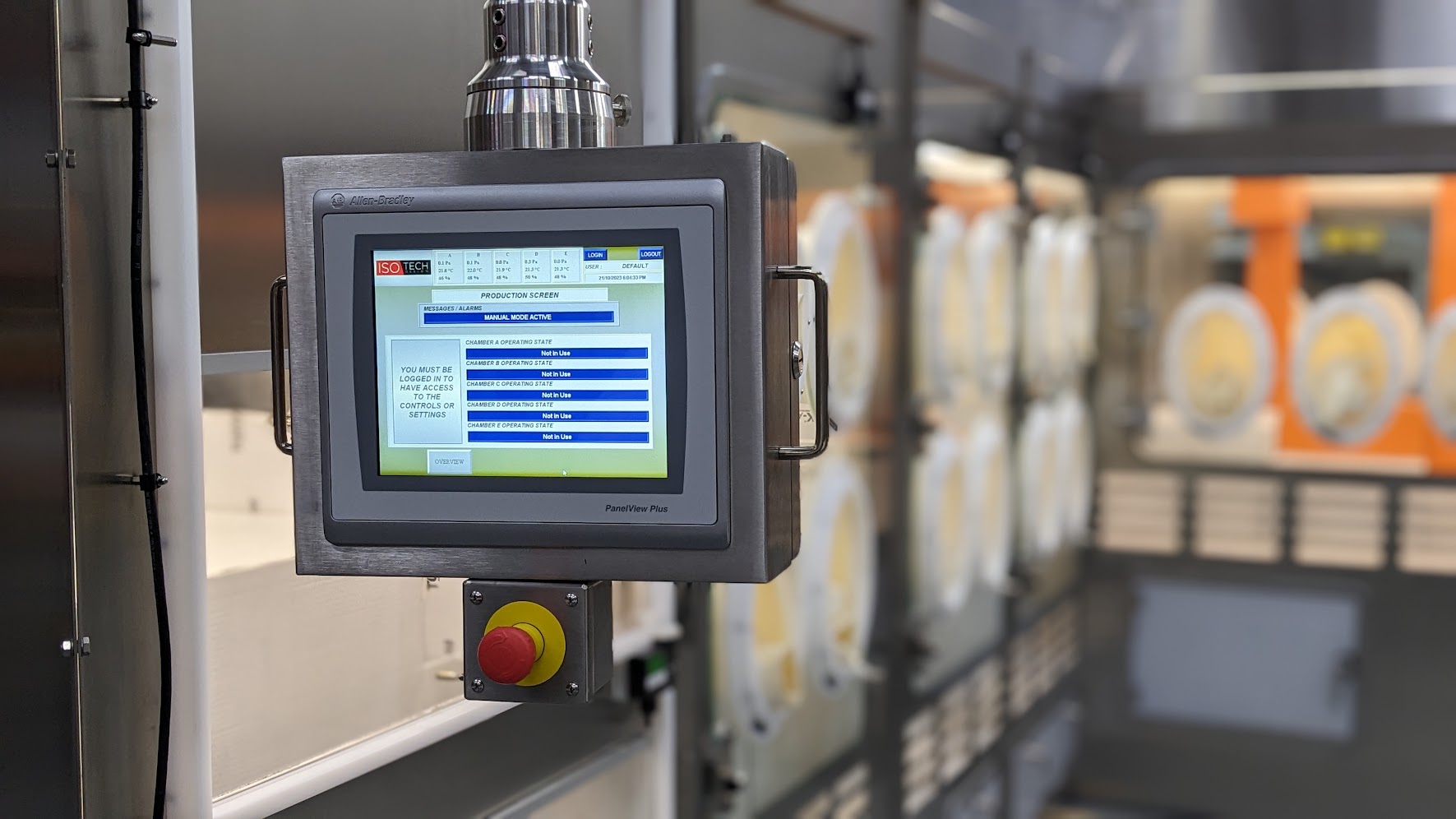

HMI Touch Interface
Allen-Bradley HMI provides comprehensive control, including pressure adjustment, temperature/humidity monitoring, door status, and out-of-range alarms.
Magnetic Gauges
Continuous pressure monitoring for each fan filter unit and the main chamber ensures optimal conditions are met at all times.
Lighting System
Lighting installed on both sides of the chamber, positioned over each door with individual/overall switches for maximum visibility.
Why Isotech Pharma RABS?
Regulatory Compliance
Meets IEST, FDA, and EU GMP Grade A standards for aseptic processing.
Enhanced Safety
Automatic interlocking doors and positive pressure design minimize contamination risks.
Customizable Design
Modular construction ready for glove port integration and adaptable to your facility’s needs.
Elevate Your Facility’s Performance
Discover how Isotech Pharma’s innovative RABS technology can streamline your aseptic workflow.
Request a Quote
